Uniforest Log Grabs
SKU
UNICG

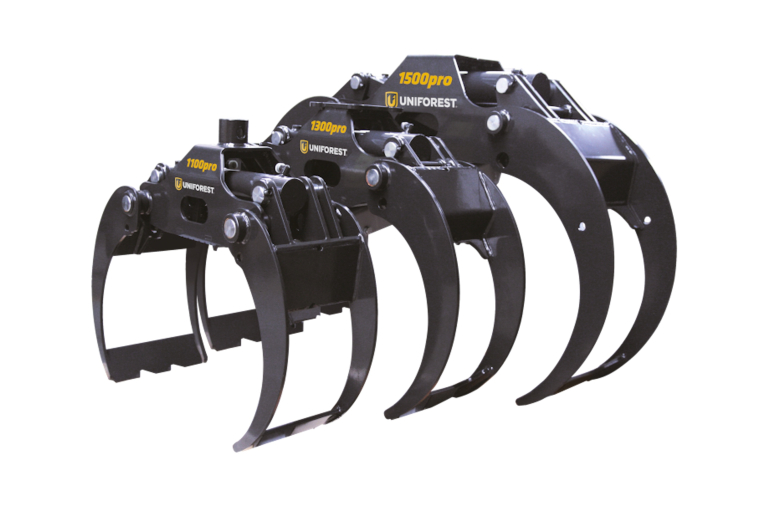

Uniforest Crane Grabs
Uniforest Crane Grabs are constructed from high quality materials and offer the best anti -corrosion protection. Wider grabs - more robust and feature double reinforced fabrication, built in silde bearing (evcludes 1100Pro). On Premium models the bolts are stabilized by conical sleeves preventing any clearance issues between the bolts and their housings.
Grab models:
| Max opening | Weight | |
| 1100 Pro | 1100 mm | 74 kg |
| 1300 Pro | 1300 mm | 96 kg |
| 1500 Pro | 1500 mm | 162 kg |
| 1500 BM | 1500 mm | 182 kg |
| 1800 Pro | 1800 mm | 204 kg |
| 19 Premium | 1273 mm | 132 kg |
| 36 Premium | 1530 mm | 220 kg |
Standard features:
- Robust construction
- Made of high quality materials
- High quality anti - corrosion protection
- All moveable parts have lubrication points
- 1500 model comes as either a Pro or a BM (biomass)
Optional extras:
- Hydraulic rotator - GR30 or GR465
Link to manufacturer:
| Brand | Uniforest® |
|---|---|
| Max Opening | 1100 - 1800 mm (model dependent) |
| Gripping Power | 6.6 - 9.5 KN |
| Tilt Function | No |
| Wireless Control | No |
| Collecting Unit/Multi-Stem Handling | No |
| Rotator | No |
| Required Oil Pressure | 200 bar |
| Weight | 220.000000 |
| Country of Manufacture | Slovenia |
