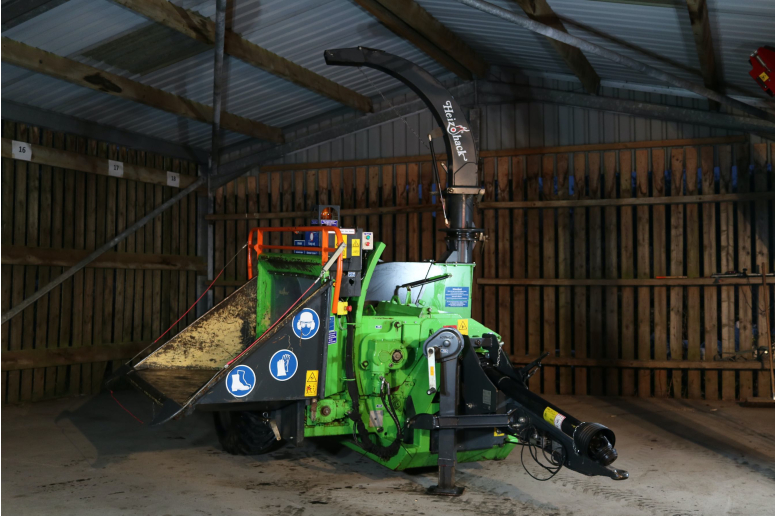

HM8-400 Woodchipper
SKU
HEIZOHM8-400
16" Hand Fed Chipper
This hand fed chipper is best suited to smaller tractors but will still produce great biomass quality chip. HM 8 - 400 can be supplied with several attachment options: 3 - point linkage, towing chassis or stationary unit.
HM 8 - 400 EM is a stationary chipper that is powered by a 3 - phase electric motor designed to be used within a yard to despose of waste materials.
Standard features:
- Infeed dimensions: 400 x 670 mm
- Trunk ⌀ 400 mm
- 600 mm long chain infeed belt
- 900 mm long infeed table
- ⌀ 450 mm pressure roller
- 45/60 mm sieve
- ⌀ 495 mm chopping drum with quick - change knives
- Low drag drum chipper: less power to run, less fuel consumed
- Flywheel dimensions: ⌀ 1370 mm & 90 mm wide
- Manually folding & swivel discharge spout
- Chipper controls: auto load - sensing infeed (stress control), adjustable infeed speed
Optional extras:
- Drive option: PTO, electric motor
- Other sieves: 60/80 mm + stop bars
- Electrically or hydraulically operated discharge spout
- Towing chassis
- Discharge spout extension
Link to manufacturer:
| Brand | Heizohack® |
|---|---|
| Infeed Height | 400 mm |
| Infeed Width | 670 mm |
| Power Required | 70 - 180 hp (120 ideally) |
| Output | 20 - 25 ㎥/hr |
| Number of Blades | 8 |
| Infeed Roller Diameter | 450 mm |
| Chipping Drum Diameter | 495 mm |
| Infeed Table Length | 900 mm |
| Standard Sieve | 45/60 mm + stop bars |
| Flywheel Diameter | 1370 mm |
| Flywheel Mass | 470 kg |
| Transport Dimensions | 2588 x 2265 x 3596 mm (HxWxL) |
| Working Dimensions | 4100 x 3105 x 3596 mm (HxWxL) |
| Weight | 3800.000000 |
| Country of Manufacture | Germany |
