FTG Mowi Timber Cranes
SKU
FTGMOC

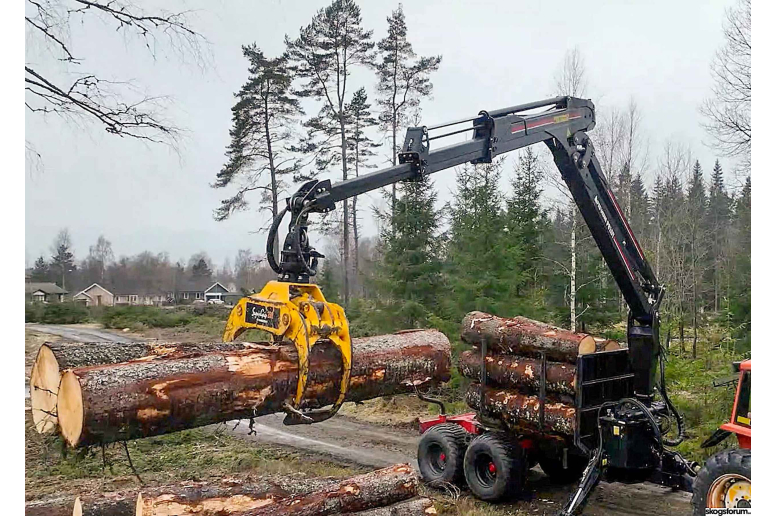

Mowi Parallel Lift Timber Cranes
Mowi cranes come in a variety of sizes, from the P 25 (5.2 m reach) right up to the P 50 T (7.8 m reach). The Mowi crane features the original parallel design, invented by Mowi.
Crane models:
| Max reach | Lift capacity at max reach | Trailer options | |
| P 25 | 5.2 m | 400 kg | 850 |
| P 30 | 5.7 m | 450 kg | 850, 1050, 1050 WD |
| P 30 T | 6.7 m | 340 kg | 850, 1050, 1050 WD |
| P 40 | 6.2 m | 480 kg | 1050, 1250, 1050 WD, 1250 WD, 1250 ND |
| P 40 T | 7.5 m | 340 kg | 1050, 1250, 1050 WD, 1250 WD, 1250 ND |
| P 50 | 6.5 m | 550 kg | 1250, 1250 WD, 1250 ND, 1450 WD |
| P 50 T | 7.8 m | 410 kg | 1250, 1250 WD, 1250 ND, 1450 WD |
Standard features:
- Stronger that conventional knuckle cranes
- Low oil flow requirements, less fuel used & wear on engines
- High lift height when close in
- Crane tip control, 1 lever movement to horizontally move the crane tip at constant height
Optional extras:
- Control options: mechanical joysticks, low pressure hydraulic joysticks, electrical proportional joysticks (mini levers) or wireless radio controlled system
- Attachment options: 3 - Point linkage A - frame with stabilizers or direct mounted on to other equipment (chippers/shredders/trailers)
See FTG Mowi Driven & Non - Driven Timber Trailers:
https://www.treelinescotland.com/ftg-mowi-driven-timber-trailers/
https://www.treelinescotland.com/ftg-mowi-non-driven-timber-trailers/
Link to manufacturer:
| Brand | FTG Moheda® |
|---|---|
| Steering Drawbar | No |
| Reach | 5.2 - 7.8 m (model dependent) |
| Lifting Torque | 21 - 46 KN (model dependent) |
| Lift Capacity at 3m | 760 - 1450 kg (model dependent) |
| Slew Torque | 8.5 - 14 KN |
| Required Oil Pressure | 170 bar |
| Required Oil Flow | 20 - 50 l/min (model dependent) |
| Weight | 1010.000000 |
| Country of Manufacture | Sweden |
