BCS Invictus 35
SKU
BCSINVICTUS35

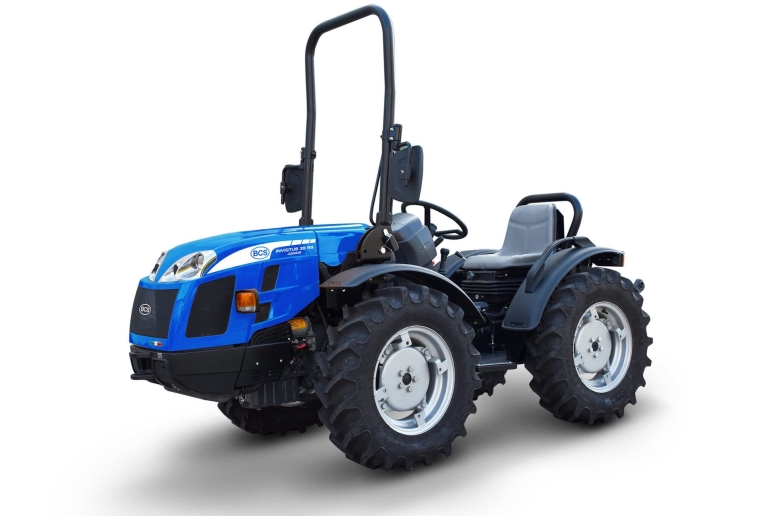

BCS Invictus 35 25hp equal sized wheel tractor
BCS Invictus 35 comes in either RS or AR steering configurations: RS - front wheel steer, AR -central articulation. Positioning of the gear levers under the steering wheel keeps maximum accessibility for the operator. Capable hydraulic system with the option of running a maximum of 6 outlets.
Standard features:
- Wheel size: 6.50 - 16 on agri tread
- Gearing: 8 forward & 4 reverse
- Permanent 4WD
- Front & rear differentioal locks
- Hydraulic steering
- Rear 3 - point linkage (Cat. I) lift capacity: 950 kg
- 1 double acting auxiliary spool valve
- Full road lighting
Optional extras:
- Variety of rear auxiliary hydraulic valves (single & double acting)
- Height adjustable steering wheel
- 'Kab' lowered seat
- Rear working light, flashing beacon
- Wheel weights (40 kg each)
- Indepentend from gearbox rear PTO (RS model)
- Variety of tyre & wheel sizes
Link to manufacturer:
| Brand | BCS |
|---|---|
| Engine horse power | 25 hp |
| Engine model | Kubota D1105 |
| Rear PTO | 540 rpm |
| Oil Flow | 16.5 l/min |
| Oil Pressure | 125 bar |
| Rear hitch category | Cat. I |
| Standard Tyre Size | 6.50 - 16 (agri tread) |
| Max travel speed | 28 km/h |
| Min travel speed | 1.3 km/h |
| Dimensions | 2010 x 1391 x 2943 mm (HxWxL) |
| Weight | 1060.000000 |
| Country of Manufacture | Italy |
